How To Test Coil On Plug

As a result the Coil On Plug Ignition System. As with most types of vehicular maintenance youll want to begin the test.

Testing An Ignition Coil On A Car

Take help from your partner or someone else and ask them to start the ignition.

How to test coil on plug. Remove one spark plug wire from its plug. Remove the spark plug using. Next remove one of the spark plugs wires from the plug itself.

When the key is turned on you should see a bright blue spark at the end of the spark plug. How to perform a spark output check on a coil over plug ignition coil. Replace the 4 ignition coil.

If you back-probe the two-wire coils ground circuit at the PCM connector and look for battery voltage with the engine warmed up but not running KOEO that tells you something about the entire circuit. Turn the vehicle off and open the hood. To test these circuits its not necessary to unplug the ignition coils connector.

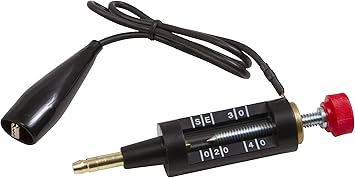

Directly on the top of each spark plug. The only safe way to test for spark is to use a spark plug tester tool. Connect your multimeter to the positive terminal or pin of your coil and to the high output terminal that goes to the spark plug.

You will recognize these coils immediately as they sit directly on top of the engines valve or cam cover are bolted down and attach directly to the spark plug via a rubber boot. As Ive already mentioned the type of Coil on Plug ignition coil that well be testing has two wires in its connector. Test the secondary circuit of the ignition coil.

Use a Coil-on-Plug COP Probe. This step involves connecting the positive terminal of your ignition coil to your digital multimeter and then to the high output terminal which runs to the spark plug. Understanding three and four-wire coil circuit design and operation.

The testing of these two circuits is done in part while the engine is being cranked. 1 Remove the Coil-On-Plug COP coil that you need to test. Then start the engine and watch the tester window.

Ignition timing is handled by the ECU based on inputs from various sensors. HOW TO TEST AN IGNITION COIL WARNING. Plus using a spark tester is safer than grounding a plug.

Itll be necessary to disconnect the COP coil from its electrical connector to remove it. Besides risking a severe shock an open plug wire or coil wire will increase the voltage demands on the coil to the point where it may damage the coil. Eliminates the need for distributors and spark plug wires.

A reading over the specification signals that the ignition coil is open which would also indicate a need to replace the coil. Never pull off a plug wire or the coils high voltage output wire to test for a spark. To test the operation of both the ignition coil and the spark plug connect the tester between the spark plug boot and the spark plug.

Hold the plug wire using insulated pliers and allow the bare end of the spark plug to touch a grounded surface. Such an exposed metal area. How to perform a relative compression test.

With the Coil On Plug Ignition System. How to perform a cylinder drop test power balance test to identify a misfiring cylinder. The majority of the ignition coils usually have a secondary resistance of about 6000 to 10000 ohms.

Check engine light P0304 misfire. Involves testing your secondary circuit of the ignition coil. The Coil On Plug Ignition System places an ignition coil.

The following testing instructions assume that you already have a specific cylinder in mind to test. Testing these circuits can be accomplished in several different ways. Test the secondary circuit of the ignition coil.

Many techs will test a coil primary winding with an ohmmeter but that only checks the coil itself when its cold.
